Name: Single Screw Double Wall Corrugated Drain Sewage Pipe Making Machine
Brand: Qingzhou Suba Machinery Co., Ltd.
SKU: SL800
Availability: InStock

Brand Name:	SUBA
Model Number:	SL800
MOQ:	1
Price:	$238,000.00 - $698,000.00/sets
Packaging Details:	Film packaging, wooden pallet etc
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ISO9001/CE

Condition:

New

Plastic Processed:

PE, PP, PVC

Screw:

Single-screw

Screw L/D Ratio:

36:1

Voltage:

Customized

Dimension(L*W*H):

29*6.8*5m

Power (kW):

520

Production Power:

222-283kW

Warranty Of Core Components:

1 Year

Raw Material:

PP/PE/PVC

Pipe Diameter:

ID200-ID800MM

Mould Material:

Aluminium Alloy

Cooling Way:

Water Cooling

Cutter:

Automatically

Moulds Number:

36/38 Pairs

Supply Ability:

2 units per month

Highlight:

Corrugated Sewage Pipe Making Machine

Double Wall Sewage Pipe Making Machine

Single Screw Drain Pipe Making Machine

Product Description

**High Speed * Excellent Performance * Easier Operation System * Low Power Consumption**

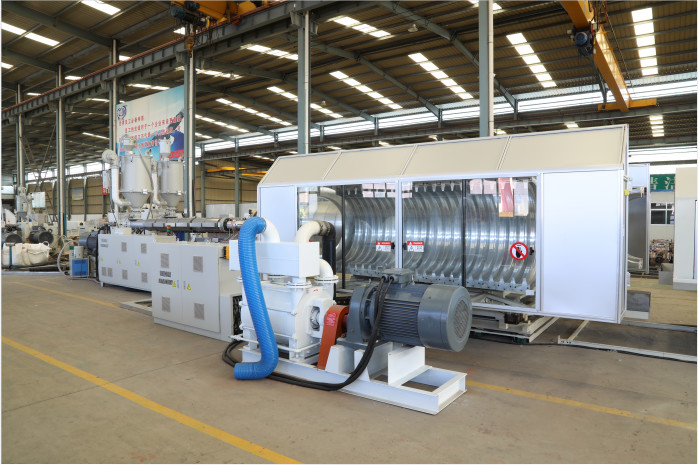

Single Screw Double Wall Corrugated Drain Sewage Pipe Making Machine 0

Configuration of SL800

SJ75/36 single screw extruder (inner layer)
SJ90/36 single screw extruder (outer layer)
SL800 corrugator
SL800 cooling tank
SL800 cutter
SL800 stacker

TECHNICAL DATE

Model	Pipe range (DN/mm)	Installed power (kW)	Production power (kW)	Moulds number (pairs)	Chain Length (mm)	Max. output (kg/h)	Dimision(LWH) (m)
SL800	ID200-OD1000	520	222-283	36/38	6333/6685	1300	296.85

EQUIPMENT FEATURES

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in

various countries.Welcome to follow us and visit us!!

CASES

Single Screw Double Wall Corrugated Drain Sewage Pipe Making Machine 7

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

PATENTS AND CERTIFICATIONS

Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,

high speed and eaiser operation system.

Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.

Rapid trouble shooting-quick response, quick redolution.

Remote control services.

Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
