Strong Aluminium Moulds high speed Double Layer Pipe Die Head with advance technology

Brand Name:	SUBA
Model Number:	SL180
MOQ:	1set
Price:	Customized
Packaging Details:	Film packaging, wooden pallet etc
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001/CE

Screw Design:

Single-screw

Operation Power:

88-120kW

Installed Power:

302kW

Moulds Number:

36 Pairs

Moulds Material:

Aluminium Alloy

Chain Length:

4475mm

Screw:

Single Screw

Screw Ratio:

36:1

Dimension:

27*4*2.8m

Plastic Processed:

PE, PP, PVC

Cost-Effective:

High

Cooling Way:

Water Cooling

Structure:

Horizontal

Supply Ability:

5 units per month

Highlight:

Double Layer Die Head Mould

,

Pipe Die Head Mould

Product Description

**High speed * Excellent performance * Easy Operation System**

* Stable structure

Strong Aluminium Moulds high speed Double Layer Pipe Die Head with advance technology 0

SUBA LINES FEATURES

Focusing
Innovation technologies
Advanced designs
High quality
High speed
Excellent performance
Easier operation system
Rich experience in profile design
Worry-free after-sales service

EQUIPMENT FEATURES

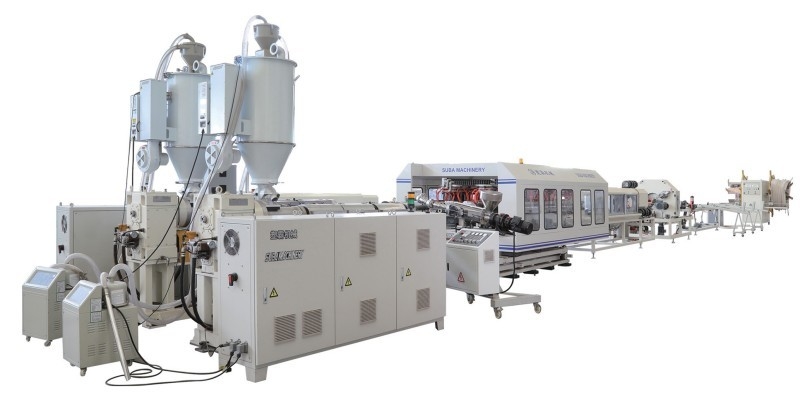

SL180 corrugated pipe machine adopts advanced corrugator technology.
On SL 180, the small-sized and mid-sized double wall corrugated pipes are produced for cable protection, water collection, ventilation system and bridge.
The corrugator is a vailable in two different lengths.
High and stable vacuum technology.

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

Strong Aluminium Moulds high speed Double Layer Pipe Die Head with advance technology 6

Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in

various countries.Welcome to follow us and visit us!!

CASES

Strong Aluminium Moulds high speed Double Layer Pipe Die Head with advance technology 7

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

PATENTS AND CERTIFICATIONS

Strong Aluminium Moulds high speed Double Layer Pipe Die Head with advance technology 8

Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,

high speed and eaiser operation system.

Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.
Rapid trouble shooting-quick response, quick redolution.
Remote control services.
Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
