Name: Small Diameter Corrugated Technology 120kW Corrugated Pipe Extrusion Equipment
Brand: Qingzhou Suba Machinery Co., Ltd.
SKU: SL180
Availability: InStock

Brand Name:	SUBA
Model Number:	SL180
MOQ:	1
Price:	$198,000.00 - $498,000.00/sets
Packaging Details:	Film packaging, wooden pallet etc

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ISO9001/CE

Condition:

New

Plastic Processed:

PE, PP, PVC, HDPE, PE/PP

Application:

PIPE

Screw Design:

Single-screw

Screw Diameter (mm):

65/75

Screw L/D Ratio:

36:1

Voltage:

380v Or Customized

Dimension(L*W*H):

27*4*2.8m

Power (kW):

88-120

Warranty:

1 Year

Key Selling Points:

High Productivity

Raw Material:

PP/PE/PVC

Pipe Diameter:

OD40-OD200MM

Mould Material:

Aluminium Alloy

Cooling Way:

Water Cooling

Cutter:

Automatically

Moulds Number:

36pairs

Port:

Qingdao

Supply Ability:

4 Unit/Units per Month

Highlight:

Corrugated Technology 120kW

Small Diameter Corrugated Technology

120kW Corrugated Pipe Extrusion Equipment

Product Description

CONFIGURATION OF SL180

SJ65/33 single screw extruder (inner layer)
SJ75/36 single screw extruder (outer layer)

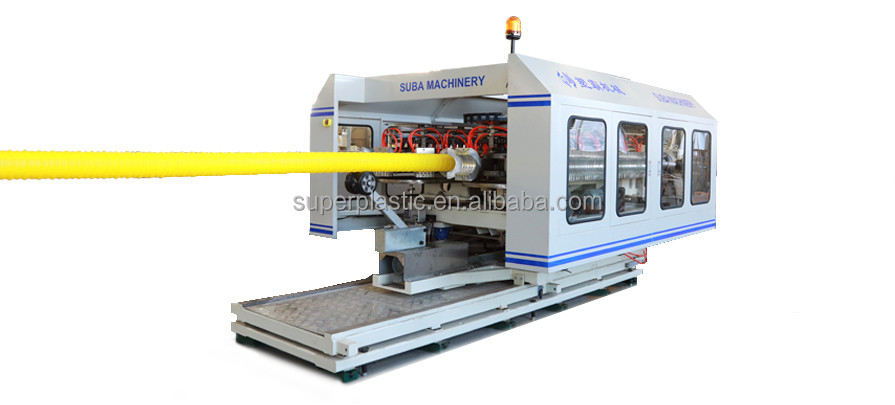

SL180 corrugator
SL180 cooling tank
SL180 haul-off
SL180 cutter
SL180 perforator (for water collection)
SL180 stacker
SL180 coiler

TECHNICAL DATE

Model	Pipe range (DN/mm)	Installed power (kW)	Production power (kW)	Moulds number (pairs)	Chain Length (mm)	Max. output (kg/h)	Dimension (LWH)(m)
SL180	ID32-OD200	302	88-120	36	4750	550	2742.8

EQUIPMENT FEATURES

High Speed * Excellent Performance * Easier Operation System * Low Power Consumption

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

CASES

Small Diameter Corrugated Technology 120kW Corrugated Pipe Extrusion Equipment 5

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

Please contact us for more details!
