Name: HDPE PP PE Corrugated Cable Ducting Extruder Machine
Brand: Qingzhou Suba Machinery Co., Ltd.
SKU: SL180
Price: 464.00 USD
Availability: InStock

Brand Name:	SUBA
Model Number:	SL180
MOQ:	1
Price:	Customized
Packaging Details:	Film packaging, wooden pallet etc
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ISO9001/CE

Pipe Diameter:

OD40-OD200MM

Cooling Way:

Water Cooling

Screw Design:

Single-screw

Screw Diameter (mm):

65/75

Screw L/D Ratio:

36:1

Moulds Number:

36 Pairs

Moulds Material:

Aluminium Alloy

Voltage:

380v Or Customized

Dimension(L*W*H):

27*4*2.8m

Installed Power (kW):

302

Production Power (kW):

88-120kW

Warranty:

1 Year

Machinery Test Report:

Provided

Raw Material:

PP/PE/PVC

Usage:

Plastic Forming Machine

Supply Ability:

4 units per month

Highlight:

HDPE Corrugated Cable Ducting extruder machine

PP Corrugated Cable Ducting extruder machine

PE Corrugated Cable Ducting extruder machine

Product Description

**High Speed * Excellent Performance * Easier Operation System**

* Low Power Consumption

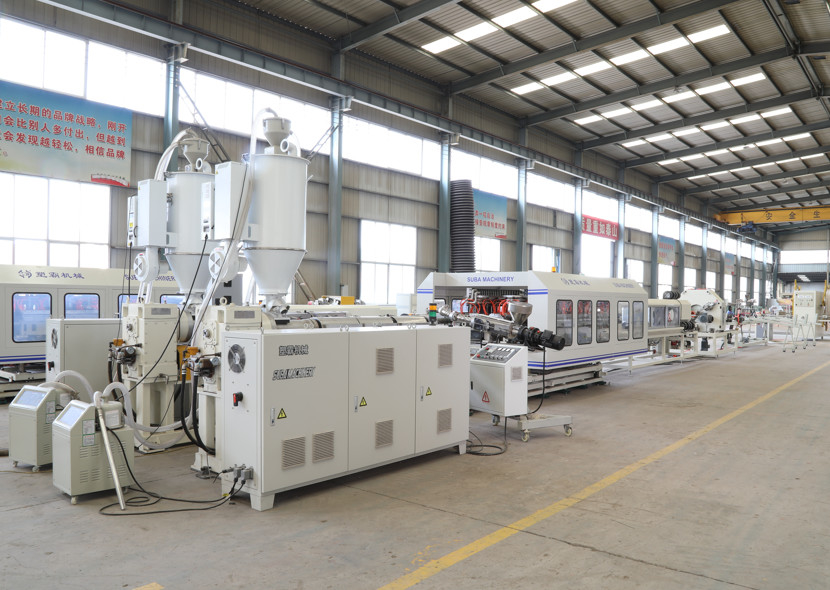

CONFIGURATION OF SL180

SJ65/33 single screw extruder (inner layer)
SJ75/36 single screw extruder (outer layer)
SL180 corrugator
SL180 cooling tank
SL180 haul-off
SL180 cutter
SL180 perforator (for water collection)
SL180 stacker
SL180 coiler

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

CASES

HDPE PP PE Corrugated Cable Ducting Extruder Machine 6

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

Please contact us for more details!
