High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine

Brand Name: Suba
Model Number: SL180
MOQ: 1
Price: Customized
Packaging Details: Film packaging, wooden pallet etc
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong China
Certification:
ISO9001/CE
Range:
ID32 - OD200mm
Screw:
Single Screw
Die Head:
Short Flow Channel
Screw L/D Ratio:
36:1
Moulds Number:
36pairs
Moulds Material:
Aluminium Alloy
Installed Power:
302kW
Operation Power:
88-120kW
Voltage:
380V Or Customized
Dimension:
27*4*2.8m
Application:
Drain Pipe, Drain Pipe
Material:
HDPE PE PP PVC
Supply Ability:
5 units per month
Highlight:

DWC Pipe Manufacturing Machine 18m/min

,

DWC Pipe Manufacturing Machine High Speed

Product Description

High Speed Double Wall Corrugated DWC Pipe

Manufacturing Machine

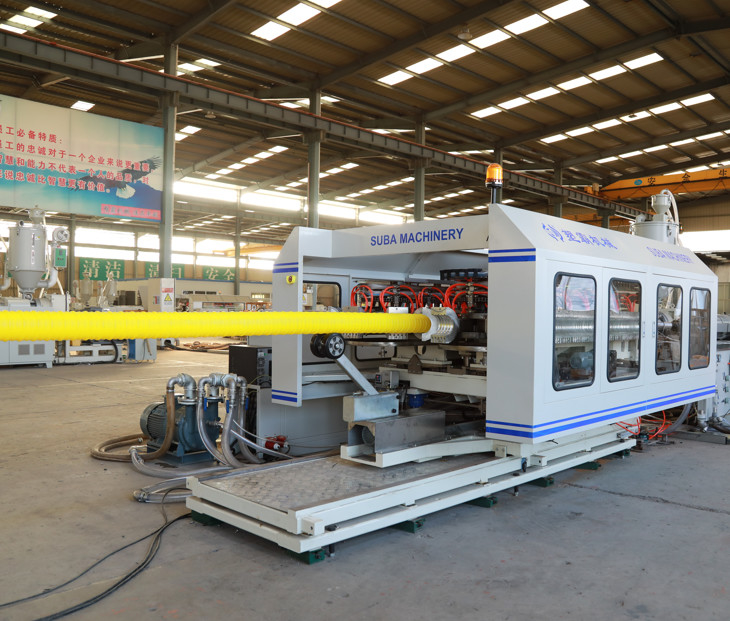

High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 0

SUBA LINES FEATURES

  • Focusing
  • Innovation technologies
  • Advanced designs
  • High quality
  • High speed
  • Excellent performance
  • Easier operation system
  • Rich experience in profile design
  • Worry-free after-sales service

TECHNICAL DATE

Model Pipe range
(DN/mm)		 Installed power
(kW)		 Production power
(kW)		 Moulds number
(pairs)		 Chain Length
(mm)		 Max. output
(kg/h)		 Dimension
(L*W*H)(m)
SL180 ID32-OD200 302 88-120 36 4750 550 27*4*2.8



EQUIPMENT FEATURES

The whole extrusion line include: extruders, corrugator, cooling tank, haul-off, cutter, coiler, stacker or perforator,
which will be customized as the clients' requirements.


High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 1

EXTRUDERS

  • Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.

High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 2


DIE HEAD

  • Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%.
  • Dynamic adjustment of die head.
  • Less adjustment time- without usage of fastening scerws.
  • Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life.
  • Fast changeover time.



High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 3

CORRUGATOR

  • Closed loop pressure water cooling system-high forming efficiency.
  • Advanced and high-strength structural design ensures stable production.
  • Powerful and high-automatic vacuum
  • Fast moulds' changeover process.
  • Equipped with water temperature control system.
  • Touch screen technology with different languages.
  • PCC control system.

High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 4

MOULD

  • Made of high-quality aluminium alloy.
  • Water-cooled moulds guarantee high cooling efficiency and high output.
  • Water temperature control system ensures excellent pipe quality.
  • Moulds are compatible with different corrugators.
  • Fast changeover time.

High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 5


CUTTER

  • Chipless cutter enable precise, noiseless and dust-free cutting
  • Innovative trigger mechanism ensures precise cutting.
  • Two modes: automatic and manual operation.
  • Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation



EXHIBITION AND CLIENTS VISITING

High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 6
Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in
various countries.Welcome to follow us and visit us!!


CASES

High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 7

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned
pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,
Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.
Look forward to work with you!


PATENTS AND CERTIFICATIONS

High Speed Double Wall Corrugated DWC Pipe Manufacturing Machine 8
Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,
high speed and eaiser operation system.

Worry-free after-sales service!

  • Timely instanllation, commissioning and personnel training services.
  • Rapid trouble shooting-quick response, quick redolution.
  • Remote control services.
  • Collect and study customers' feedback and suggestions.
Please don't hesitate to contact us!!!
