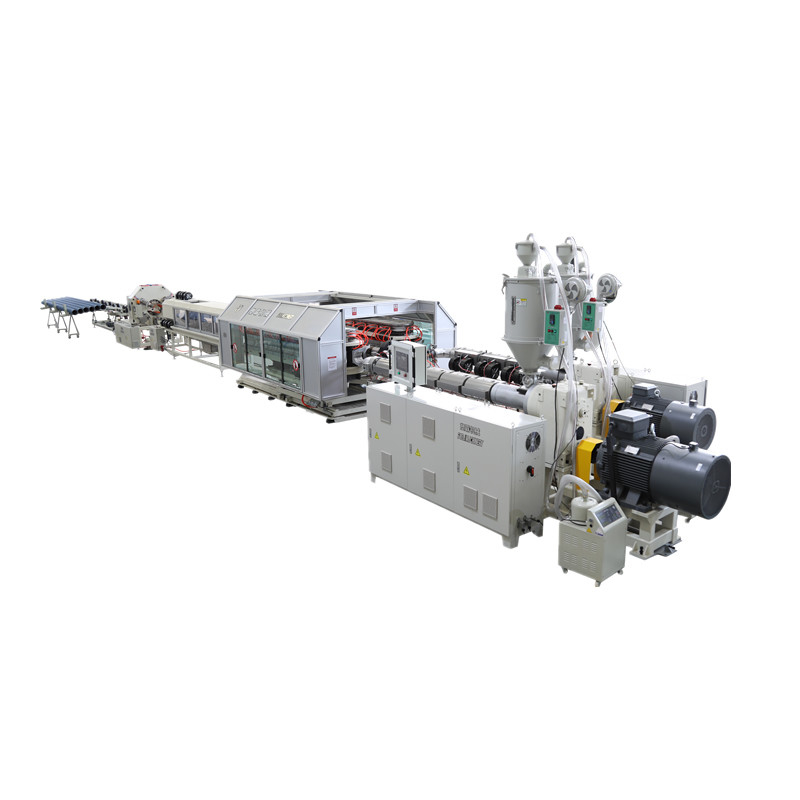

Aluminium Moulds Single Screw Double Wall Corrugated Pipe Making Machinery

Brand Name:	SUBA
Model Number:	SL300
MOQ:	1
Price:	Customized
Packaging Details:	Film packaging, wooden pallet etc
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ISO9001/CE

Cooling Way:

Water Cooling

Structure:

Horizontal

Moulds Number:

36/38 Pairs

Screw Design:

Single-screw

Screw L/D Ratio:

36:1

Voltage:

380V Or Customized

Dimension(L*W*H):

27*4.3*3.5m

Installed Power (kW):

310

Operation Power:

126-150kW

Warranty:

1 Year

Raw Material:

PP/PE/PVC

Pipe Diameter:

ID100-OD315mm

Mould Material:

Aluminium Alloy

Supply Ability:

4 units per month

Highlight:

Double Wall Corrugated Pipe Making Machinery

,

Single Screw Corrugated Pipe Making Machinery

Product Description

Single Screw Double Wall Corrugated Pipe Making Machinery With 36 Pairs Moulds

SUBA LINES FEATURES

1. Excellent performance, stable operation.

2. Provide your customer with high quality and beautiful pipes with optimal profile design.

3. High production speed.

4. Save your labor and power consumption.

5. Stable structure - Horizontal structure.

6. Easier operation system and patented automatic down-stream pro

ducts, such as: the cutter machine.

TECHNICAL DATE

Model	Pipe range (DN/mm)	Installed power (kW)	Production power (kW)	Moulds number (pairs)	Chain Length (mm)	Max. output (kg/h)	Dimision(LWH) (m)
SL300	ID100-OD315	310	126-150	36	6333	750	274.33.5

EQUIPMENT FEATURES

The whole extrusion line include: extruders, corrugator, cooling tank, cutter, stacker and the toolings.

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

Aluminium Moulds Single Screw Double Wall Corrugated Pipe Making Machinery 7

Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in

various countries.Welcome to follow us and visit us!!

CASES

Aluminium Moulds Single Screw Double Wall Corrugated Pipe Making Machinery 8

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

PATENTS AND CERTIFICATIONS

Aluminium Moulds Single Screw Double Wall Corrugated Pipe Making Machinery 9

Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,

high speed and eaiser operation system.

Please don't hesitate to contact us!!!
