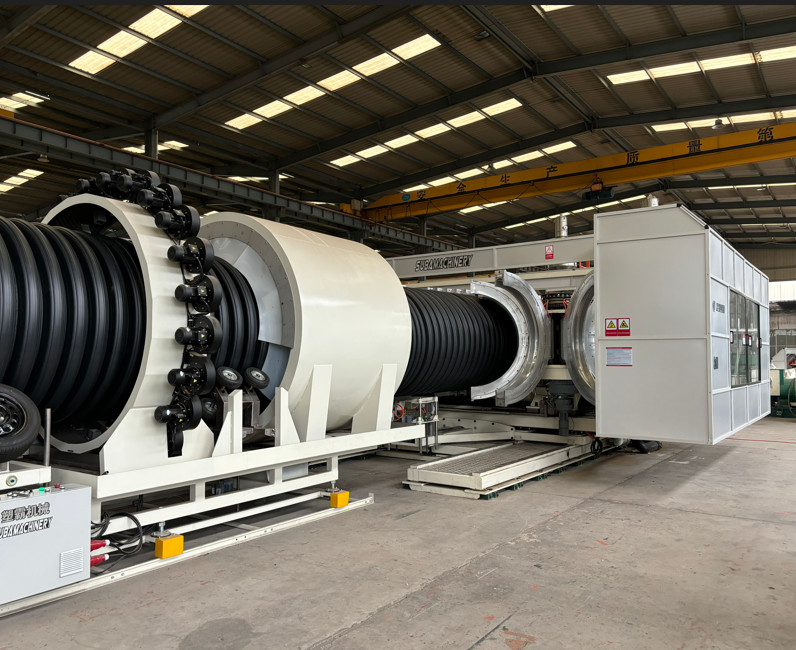

OD2000 Double Layer Plastic Corrugated Pipe Manufacturing Process Making Machine

All Category

Corrugated Pipe Production Line

Corrugated Pipe Extrusion Line

Double Wall Corrugated Pipe Extrusion Line

DWC Pipe Manufacturing Machine

Corrugated Pipe Manufacturing Process

Corrugated Pipe Cutting Machine

Corrugated Pipe Equipment

Miss. Amy

amywang@subamachinery.com

+86 18765639190

Contact Now

OD2000 Double Layer Plastic Corrugated Pipe Manufacturing Process Making Machine

Brand Name:	Suba Machinery
Model Number:	SL1600
MOQ:	1
Price:	Customized
Payment Terms:	L/C, T/T
Supply Ability:	4 Unit/Units per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong China

Certification:

ISO9001/CE

Applicable Industries:

Drainage, Sewage, Storm Water

Machinery Test Report:

Provided

Warranty Of Core Components:

1 Year

Condition:

Pipe Material:

PE/PP

Voltage:

380v Or As Your Request

Dimension(L*W*H):

40m*10m*6.5m

Pipe Diameter:

ID1000mm To OD2000mm

Control System:

Advantage:

High Performance

Moulds:

38 Pairs

Packaging Details:

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Supply Ability:

4 Unit/Units per Month

Highlight:

Plastic Corrugated Pipe Manufacturing Process

Double Layer Corrugated Pipe Manufacturing Process

Plastic Corrugated Pipe Making Machine

Product Description

Configuration of SL2000

SJ90/36 single screw extruder (inner layer)
SJ120/36 single screw extruder (outer layer)
SL1600 corrugator
SL1600 cooling tank
SL1600 cutter
SL1600 stacker

**Excellent Performance * Easier Operation System * Low Power Consumption**

TECHNICAL DATE

Model

Pipe range
(DN/mm)

Installed power
(kW)

Production power
(kW)

Moulds number
(pairs)

Chain Length
(mm)

Max. output
(kg/h)

Dimision

(L*W*H)
(m)

SL1600

ID1000-OD2000

1480

390-570

6685

1600

40*10*6.5

EQUIPMENT FEATURES

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in

various countries.Welcome to follow us and visit us!!

CASES

OD2000 Double Layer Plastic Corrugated Pipe Manufacturing Process Making Machine 7

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

PATENTS AND CERTIFICATIONS

Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,

high speed and eaiser operation system.

Please contact us for more details!!!
