High Corrugated Pipe Plant Double Wall Drain Pipe Extrusion Line

Brand Name:	Suba Machinery
Model Number:	SL600
MOQ:	1
Price:	$198,000.00 - $698,000.00/sets >=1 sets
Packaging Details:	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong China

Certification:

ISO9001/CE

Condition:

New

Pipe Material:

PE/PP/HDPE/LDPE

Voltage:

380v Or Customized

Operation Power:

190- 220kw

Dimension(L*W*H):

27m*4m*2.8m

Warranty:

1 Year

Key Selling Points:

Long Service Life

Pipe Diameter:

ID100mm To OD630mm

Usage:

Construction, Drainage, Sewage Etc

Control System:

PLC

Key Word:

High Automation

Supply Ability:

5 units per month

Highlight:

High Speed Corrugated Pipe Production Line

380V Corrugated Pipe Production Line

Double Wall Drain Pipe Extrusion Line

Product Description

**High Speed * Excellent Performance * Easier Operation System**

* Low Power Consumption

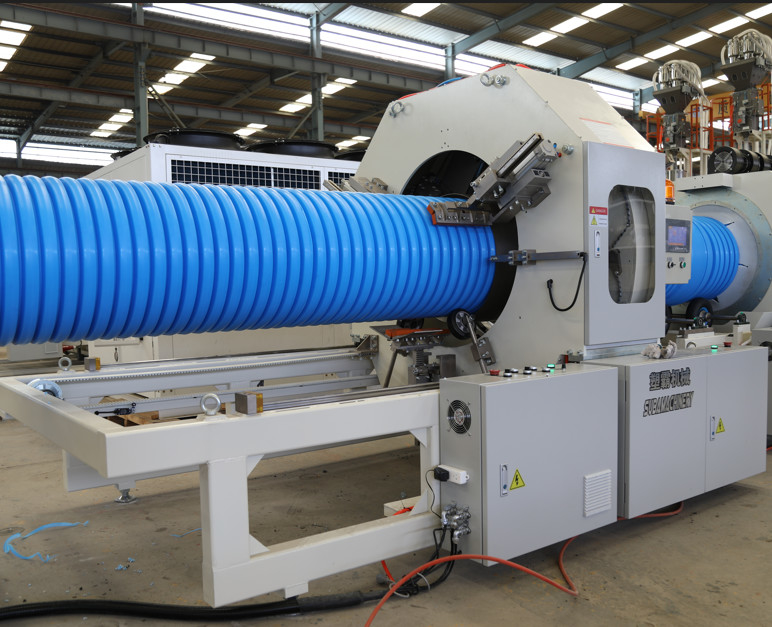

High Corrugated Pipe Plant Double Wall Drain Pipe Extrusion Line 0

Configuration of SL800

SJ75/36 single screw extruder (inner layer)
SJ90/36 single screw extruder (outer layer)
SL600 corrugator
SL600 cooling tank
SL600 cutter
SL600 stacker

EQUIPMENT FEATURES

The whole extrusion line include: extruders, corrugator, cooling tank, cutter, stacker and the toolings.

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation
