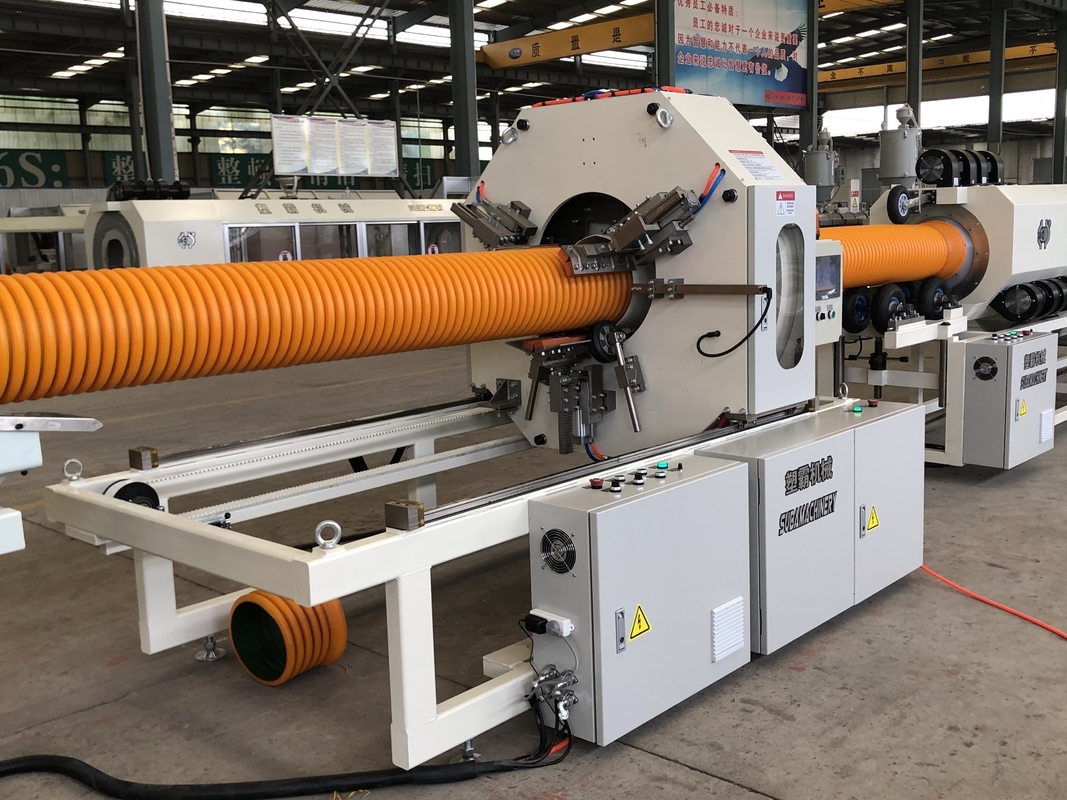

Name: Water Cooling Plastic PVC DWC Pipe Machine Making Machine Extrusion Line
Brand: Qingzhou Suba Machinery Co., Ltd.
SKU: SL300
Price: 299,064.00 USD
Availability: InStock

Brand Name:	Suba Machinery
Model Number:	SL300
MOQ:	1
Price:	Customized
Packaging Details:	Film packaging, wooden pallet etc
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong China

Certification:

ISO9001/CE

Pipe Range:

ID100- OD315mm

Cooling Way:

Water Cooling

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty Of Core Components:

1 Year

Electric Components:

ABB, Siemens, Flender Etc

Screw:

Single Screw

Screw L/D Ratio:

36:1

Moulds Number:

36 Pairs

Moulds Material:

Aluminium Alloy

Chain Length:

6333mm

Voltage:

380v Or As Your Request

Installed Power:

310kW

Production Power:

126-150kW

Warranty:

1 Year

Raw Material:

HDPE PP PVC

Control System:

PLC

Supply Ability:

4 units per month

Highlight:

Water Cooling DWC Pipe Machine

PVC DWC Pipe Machine

DWC Pipe Making Machine 380V

Product Description

High Speed * Excellent Performance * Easier Operation System
* Low Power Consumption

CONFIGURATION OF SL300

SJ65/33 single screw extruder (inner layer)
SJ75/36 single screw extruder (outer layer)
SL300 corrugator
SL300 cooling tank
SL300 cutter
SL300 stacker

EQUIPMENT FEATURES

On SL300 plastic corrugated pipe extrusion line, the mid-sized double wall corrugated pipes are produced for drainage, sewage, cable protection and water collection.
Moulds are compatible with SL600 and SL800.
High and stable vacuum technology

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

CASES

Water Cooling Plastic PVC DWC Pipe Machine Making Machine Extrusion Line 6

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.
Rapid trouble shooting-quick response, quick redolution.
Remote control services.
Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
