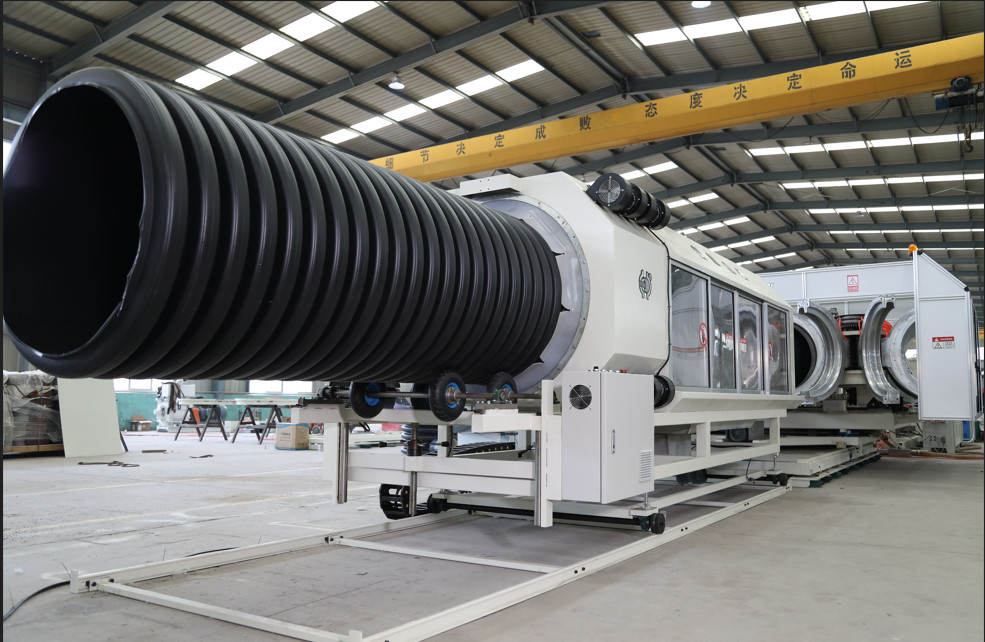

Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine
  • name
  • name
  • name
  • name

Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine

Brand Name: SUBA
Model Number: SL1200
MOQ: 1
Price: $398,000.00 - $798,000.00/sets
Packaging Details: Wooden boxes and films for export.
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong, China
Certification:
ISO9001/CE
Plastic Processed:
PE, PP, PVC, HDPE, PE/PP
Screw Design:
Single-screw
Screw L/D Ratio:
36:1
Voltage:
380v Or Customized
Moulds Material:
Aluminium Alloy
Moulds Number:
38 Pairs.
Installed Power:
1430kW
Opeation Power:
390-520kW
Dimension:
38*8.5*5.8m
Pipe Diameter:
ID600-OD1400MM
Structure:
Horizontal
Cooling Way:
Water Cooling
Supply Ability:
2 units per month.
Highlight:

Large DWC Pipe Manufacturing Machine

,

Plastic DWC Pipe Manufacturing Machine

,

6m Corrugated Pipe Making Machine

Product Description

400-1200 mm Single Screw DWC Pipe Manufacturing Line

SUBA LINES FEATURES

1. Excellent performance, stable operation.
2. Provide your customer with high quality and beautiful pipes with optimal profile design.
3. High production speed.
4. Save your labor and power consumption.
5. Stable structure - Horizontal structure.
6. Easier operation system and patented automatic down-stream products, such as: the cutter machine.
Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 1

TECHNICAL DATE

Model Pipe range
(DN/mm)		 Installed power
(kW)		 Production power
(kW)		 Moulds number
(pairs)		 Chain Length
(mm)		 Max. output
(kg/h)		 Dimision(L*W*H)
(m)
SL1200 ID600-OD1400 1430 390-520 38 6685  1600 38*8.5*5.8



EQUIPMENT FEATURES

The whole extrusion line include: extruders, corrugator, cooling tank, cutter, tacker and the toolings.


Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 2

EXTRUDERS

  • Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.


Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 3


DIE HEAD

  • Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%.
  • Dynamic adjustment of die head.
  • Less adjustment time- without usage of fastening scerws.
  • Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life.
  • Fast changeover time.


Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 4



CORRUGATOR

  • Closed loop pressure water cooling system-high forming efficiency.
  • Advanced and high-strength structural design ensures stable production.
  • Powerful and high-automatic vacuum
  • Fast moulds' changeover process.
  • Equipped with water temperature control system.
  • Touch screen technology with different languages.
  • PCC control system.

Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 5

MOULD

  • Made of high-quality aluminium alloy.
  • Water-cooled moulds guarantee high cooling efficiency and high output.
  • Water temperature control system ensures excellent pipe quality.
  • Moulds are compatible with different corrugators.
  • Fast changeover time.

Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 6


CUTTER

  • Chipless cutter enable precise, noiseless and dust-free cutting
  • Innovative trigger mechanism ensures precise cutting.
  • Two modes: automatic and manual operation.
  • Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation



EXHIBITION AND CLIENTS VISITING

Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 7
Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in
various countries.Welcome to follow us and visit us!!


CASES

Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 8

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned
pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,
Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.
Look forward to work with you!


PATENTS AND CERTIFICATIONS

Large Plastic DWC Pipe Manufacturing Machine Corrugated Pipe Making Machine 9
Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,
high speed and eaiser operation system.

Worry-free after-sales service!

  • Timely instanllation, commissioning and personnel training services.
  • Rapid trouble shooting-quick response, quick redolution.
  • Remote control services.
  • Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
