Name: Single screw High Output corrugated pipe extruder
Brand: Qingzhou Suba Machinery Co., Ltd.
SKU: SL600
Price: 464.00 USD
Availability: InStock

Brand Name:	Suba
Model Number:	SL600
MOQ:	1
Price:	Customized
Packaging Details:	Wooden boxes and films for export.
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

CE Certificate

Condition:

New

Plastic Processed:

Application:

PIPE

Screw Design:

Single-screw

Voltage:

380V

Dimension(L*W*H):

33*5.5*3.8m

Installed Power:

465kw

Operation Power:

190-220kW

Pipe Range:

ID100-OD630mm

Max. Output:

1100kg/h

Raw Material:

PE/PP/PVC

Cooling Way:

Water Cooling

Structure:

Horizontal

Port:

Qingao Port

Supply Ability:

4 units per month

Highlight:

600kg/Hr Plastic Granulating Machine

CE Plastic Granulating Machine

Product Description

**High Speed * Excellent Performance * Easier Operation System * Low Power Consumption**

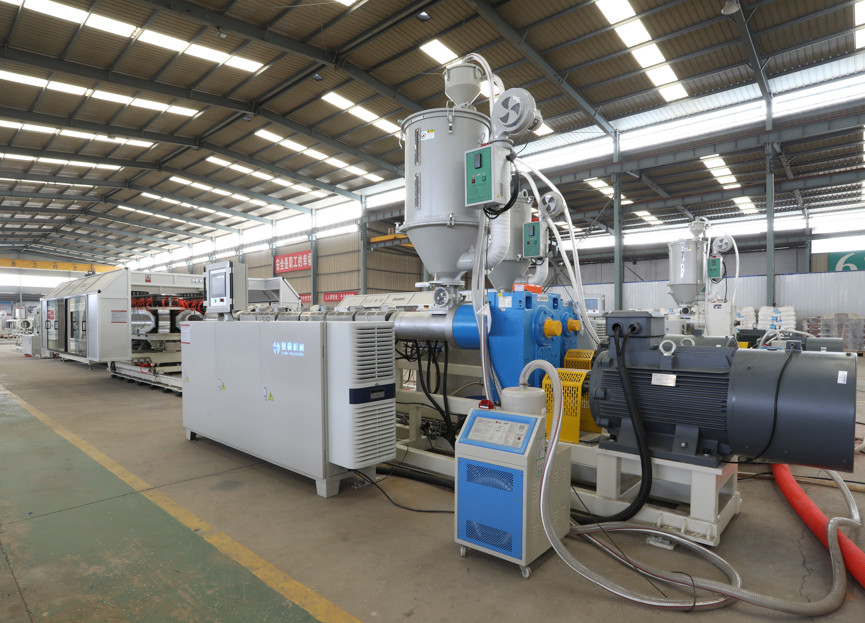

Single screw High Output corrugated pipe extruder 0

CONFIGURATION OF SL600

SJ75/36 single screw extruder (inner layer)
SJ90/36 single screw extruder (outer layer)
SL600 corrugator
SL600 cooling tank
SL600 cutter
SL600 stacker

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

CASES

Single screw High Output corrugated pipe extruder 6

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.
Rapid trouble shooting-quick response, quick redolution.
Remote control services.
Collect and study customers' feedback and suggestions.

Please contact us for more details!!!
