Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line

Brand Name: SUBA
Model Number: SL180/SL300/SL600/SL800/SL1000/SL1200/SL1600
MOQ: 1
Price: $198,000.00 - $598,000.00/sets
Supply Ability: 4 units per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001/CE
Cooling System:
Water Cooling
Structure:
Horizontal
Control System:
PLC
Warranty:
1 Year
Moulds Number:
36/38 Pairs
Moulds Material:
Aluminium Alloy
Screw:
Single-screw
Screw L/D Ratio:
36:1
Production Range:
ID100-OD630mm
Application:
Construction Works: Drainage, Sewage Etc
Packaging Details:
Film packaging, wooden pallet etc
Supply Ability:
4 units per month
Highlight:

Plastic Corrugated Pipe Equipment

,

Water Cooling Corrugated Pipe Equipment

,

Plastic Corrugated Pipe Extrusion Line

Product Description

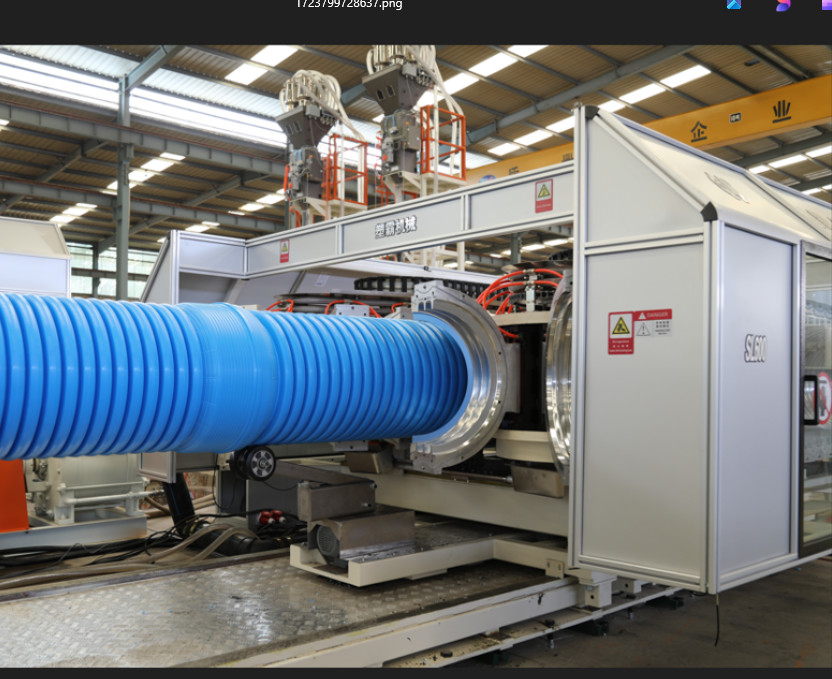

Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line

 Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 0

SUBA LINES FEATURES:

  • Focusing
  • Innovation technologies
  • Advanced designs
  • High quality
  • High speed
  • Excellent performance
  • Easier operation system
  • Rich experience in profile design
  • Worry-free after-sales service

TECHNICAL DATE

Model Pipe range
(DN/mm)		 Installed power
(kW)		 Production power
(kW)		 Moulds number
(pairs)		 Chain Length
(mm)		 Max. output
(kg/h)		 Dimision(L*W*H)
(m)
SL300 ID100-OD630 465 126-150 36/38 6333/6685 750 27*4.3*3.5



EQUIPMENT FEATURES

The whole extrusion line include: extruders, corrugator, cooling tank, cutter, stacker and the toolings.


Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 1

EXTRUDERS

  • Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.

Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 2


DIE HEAD

  • Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%.
  • Dynamic adjustment of die head.
  • Less adjustment time- without usage of fastening scerws.
  • Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life.
  • Fast changeover time.



Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 3

CORRUGATOR

  • Closed loop pressure water cooling system-high forming efficiency.
  • Advanced and high-strength structural design ensures stable production.
  • Powerful and high-automatic vacuum
  • Fast moulds' changeover process.
  • Equipped with water temperature control system.
  • Touch screen technology with different languages.
  • PCC control system.

Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 4

MOULD

  • Made of high-quality aluminium alloy.
  • Water-cooled moulds guarantee high cooling efficiency and high output.
  • Water temperature control system ensures excellent pipe quality.
  • Moulds are compatible with different corrugators.
  • Fast changeover time.

Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 5


CUTTER

  • Chipless cutter enable precise, noiseless and dust-free cutting
  • Innovative trigger mechanism ensures precise cutting.
  • Two modes: automatic and manual operation.
  • Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation



EXHIBITION AND CLIENTS VISITING

Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 6
Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in
various countries.Welcome to follow us and visit us!!


CASES

Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 7

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned
pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,
Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.
Look forward to work with you!


PATENTS AND CERTIFICATIONS

Water Cooling Plastic Corrugated Pipe Equipment Dwc Pipe Extrusion Line 8
Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,
high speed and eaiser operation system.


Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.

Rapid trouble shooting-quick response, quick redolution.

Remote control services.

Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
