2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer

Brand Name: SUBA
Model Number: SL1600
MOQ: 1
Price: $12, 228,000.00 - $19,980,000.00/sets
Supply Ability: 4 Unit/Units per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong, China
Certification:
ISO9001/CE
Cooling Type:
Water Cooling
Structure:
Horizontal
Moulds Number:
38 Pairs
Moulds Material:
Aluminium Alloy
Screw:
Single Screw
Screw L/D Ratio:
36:1
Installed Power:
1480kW
Production Power:
390-570kW
Voltage:
380V Or Customized
Dimension(L*W*H):
40*10*6.5m
Warranty:
1 Year
Raw Material:
PP/PE/PVC
Pipe Diameter:
ID1000-OD2000MM
Packaging Details:
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Supply Ability:
4 Unit/Units per Month
Highlight:

DWC Pipe Machine

,

Corrugated Pipe Extrusion Line Plant

,

2000mm DWC Pipe Machine

Product Description

PLC Control System Fully Automatic PP PE Plastic Corrugated Pipe Equipment

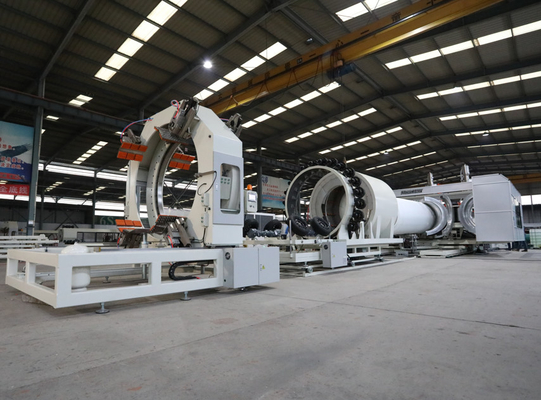

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 0

SUBA LINES FEATURES:

  • Focusing
  • Innovation technologies
  • Advanced designs
  • High quality
  • High speed
  • Excellent performance
  • Easier operation system
  • Rich experience in profile design
  • Worry-free after-sales service

EQUIPMENT FEATURES

The whole extrusion line include: extruders, corrugator, cooling tank, cutter, stacker and the toolings.

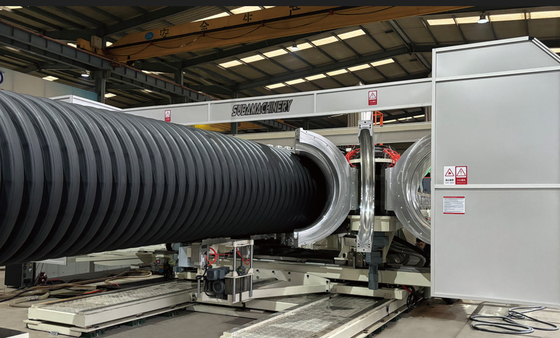

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 1

EXTRUDERS

  • Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.

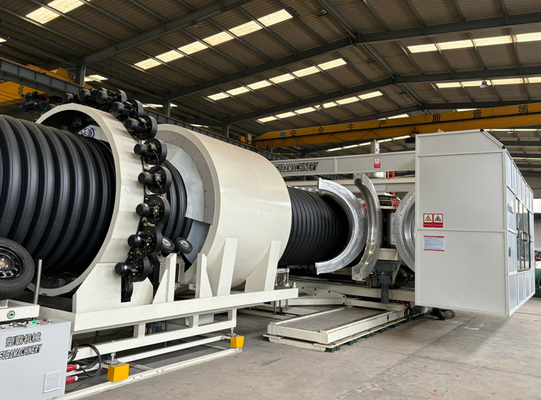

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 2


DIE HEAD

  • Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%.
  • Dynamic adjustment of die head.
  • Less adjustment time- without usage of fastening scerws.
  • Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life.
  • Fast changeover time.



2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 3

CORRUGATOR

  • Closed loop pressure water cooling system-high forming efficiency.
  • Advanced and high-strength structural design ensures stable production.
  • Powerful and high-automatic vacuum
  • Fast moulds' changeover process.
  • Equipped with water temperature control system.
  • Touch screen technology with different languages.
  • PCC control system.

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 4

MOULD

  • Made of high-quality aluminium alloy.
  • Water-cooled moulds guarantee high cooling efficiency and high output.
  • Water temperature control system ensures excellent pipe quality.
  • Moulds are compatible with different corrugators.
  • Fast changeover time.

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 5


CUTTER

  • Chipless cutter enable precise, noiseless and dust-free cutting
  • Innovative trigger mechanism ensures precise cutting.
  • Two modes: automatic and manual operation.
  • Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation



EXHIBITION AND CLIENTS VISITING

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 6
Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in
various countries.Welcome to follow us and visit us!!


CASES

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 7

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned
pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,
Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.
Look forward to work with you!


PATENTS AND CERTIFICATIONS

2000mm Large Dwc Pipe Machine Corrugated Pipe Extrusion Line Plant Manufacturer 8
Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,
high speed and eaiser operation system.


Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.

Rapid trouble shooting-quick response, quick redolution.

Remote control services.

Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
