Corrugated Tube Machine

PE HDPE Plastic Conduit Pipe Manufacturing Machine Extrusion Line

All Category

Corrugated Pipe Production Line

Corrugated Pipe Extrusion Line

Double Wall Corrugated Pipe Extrusion Line

DWC Pipe Manufacturing Machine

Corrugated Pipe Manufacturing Process

Corrugated Pipe Cutting Machine

Corrugated Pipe Equipment

Miss. Amy

amywang@subamachinery.com

+86 18765639190

Chat Now

PE HDPE Plastic Conduit Pipe Manufacturing Machine Extrusion Line

Brand Name:	Suba Machinery
Model Number:	SL180
MOQ:	1
Price:	Customized
Payment Terms:	L/C, T/T
Supply Ability:	4 Unit/Units per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong China

Certification:

ISO9001/CE

Structure:

Horizontal

Cooling Way:

Water Cooling

Warranty Of Core Components:

1 Year

Condition:

Type:

Pipe Production Line

Pipe Material:

PE/PP/HDPE/PVC

Voltage:

380v Or As Your Request

Power:

Dimension(L*W*H):

27m*2.8m*4m

Warranty:

1 Year

Material:

HDPE PP PE

Pipe Application:

Drainge

Pipe Diameter:

ID32mm To OD200mm

Control System:

Feature:

Long Service Life

Advantage:

High Speed

Packaging Details:

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Supply Ability:

4 Unit/Units per Month

Highlight:

Plastic Conduit Pipe Manufacturing Machine

HDPE Conduit Pipe Manufacturing Machine

Product Description

**High Speed * Excellent Performance * Easier Operation System**

* Low Power Consumption

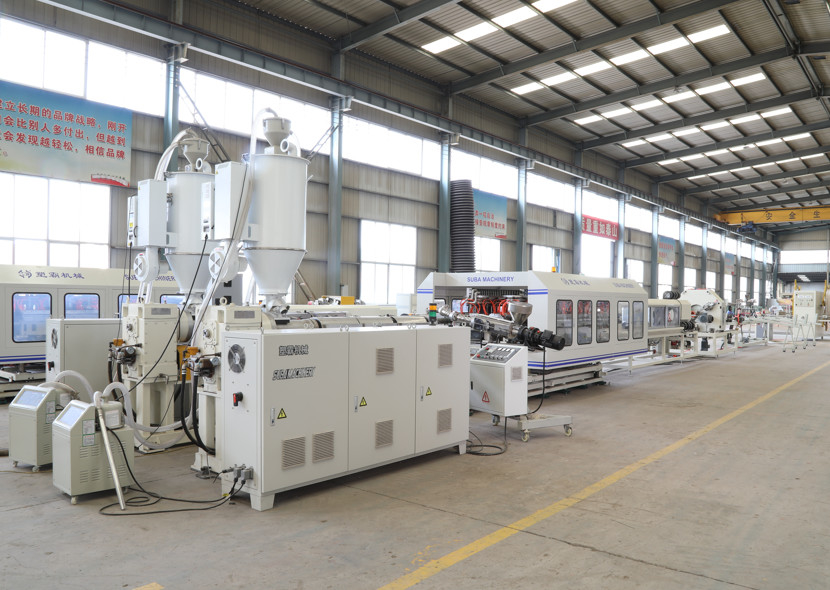

Configuration of SL180

SJ65/33 single screw extruder (inner layer)
SJ75/36 single screw extruder (outer layer)
SL180 corrugator
SL180 cooling tank
SL180 haul-off
SL180 cutter
SL180 perforator (for water collection)
SL180 stacker

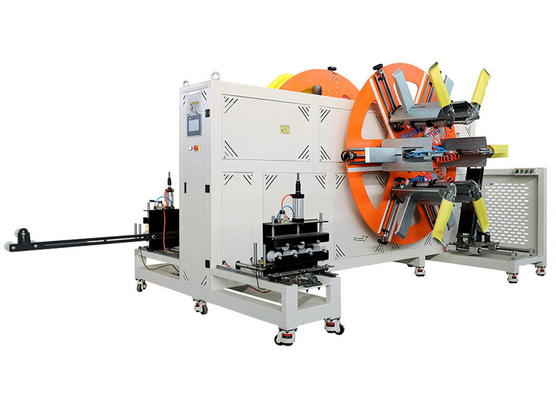

SL180 coiler

EQUIPMENT FEATURES

On SL180, the small-sized and mid-sized double wall corrugated pipes are produced for cable protection, water collection, ventilation system and bridge.
The corrugator is available in two different lengths.
High and stable vacuum technology.

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.

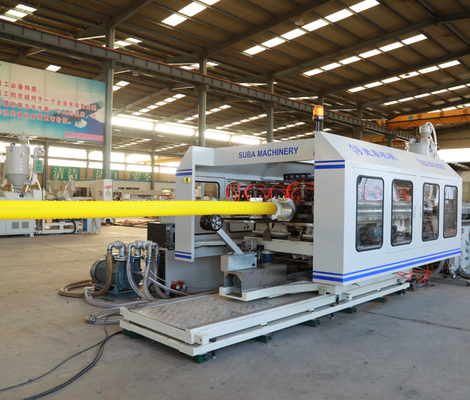

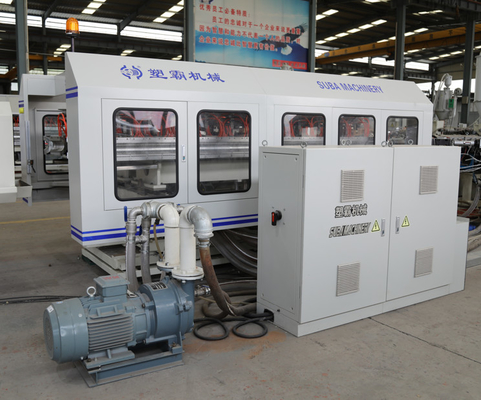

	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

CASES

PE HDPE Plastic Conduit Pipe Manufacturing Machine Extrusion Line 6

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

Please contact us for more details!
