HDPE Plastic Pipe Extrusion Line High Accurate Corrugated Tube Machine

Brand Name:	SUBA
Model Number:	SL300
MOQ:	1
Price:	Customized
Payment Terms:	L/C, T/T
Supply Ability:	4 Unit/Units per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ISO9001/CE

Structure:

Horizontal

Cooling Way:

Water Cooling

Range:

ID100- OD315mm

Pipe Material:

PE,PP, PVC

Application:

Drainage, Sewage, Electric Conduit Etc

Voltage:

380v Or Customized

Installed Power:

310kW

Operation Power:

126-150kW

Dimension(L*W*H):

27*4.3*3.5 M

Moulds Number:

36 Pairs

Moulds Material:

Aluminium Alloy

Packaging Details:

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Supply Ability:

4 Unit/Units per Month

Highlight:

HDPE Plastic Pipe Extrusion Line

Plastic Pipe Extrusion Line High Accurate

High Accurate Corrugated Tube Machine

Product Description

High Speed * Excellent Performance * Easier Operation System
* Low Power Consumption

Configuration of SL300

SJ65/33 single screw extruder (inner layer)
SJ75/36 single screw extruder (outer layer)
SL300 corrugator
SL300 cooling tank
SL300 cutter
SL300 stacker

EQUIPMENT FEATURES

On SL300 plastic corrugated pipe extrusion line, the mid-sized double wall corrugated pipes are produced for drainage, sewage, cable protection and water collection.
Moulds are compatible with SL600 and SL800.
High and stable vacuum technology

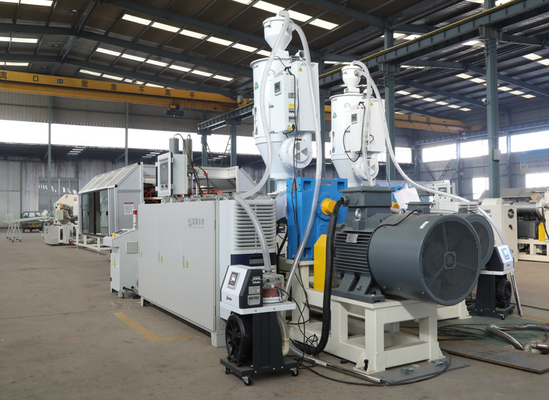

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.

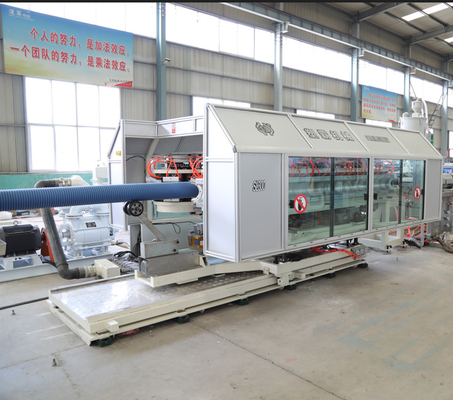

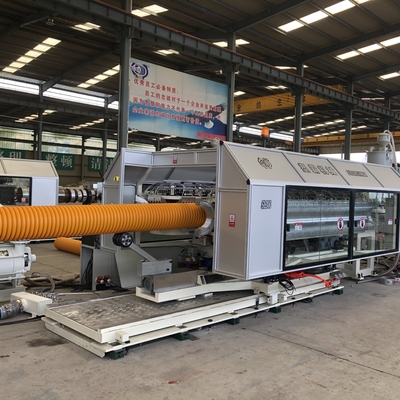

	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.

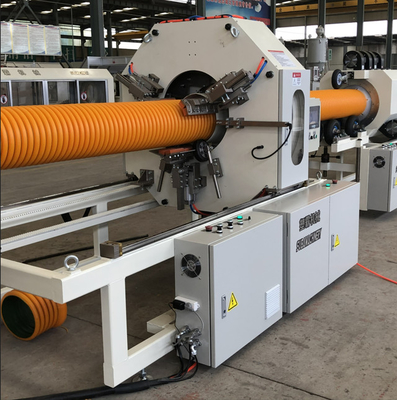

	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in

various countries.Welcome to follow us and visit us!!

CASES

HDPE Plastic Pipe Extrusion Line High Accurate Corrugated Tube Machine 7

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

PATENTS AND CERTIFICATIONS

Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,

high speed and eaiser operation system.

Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.
Rapid trouble shooting-quick response, quick redolution.
Remote control services.
Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
